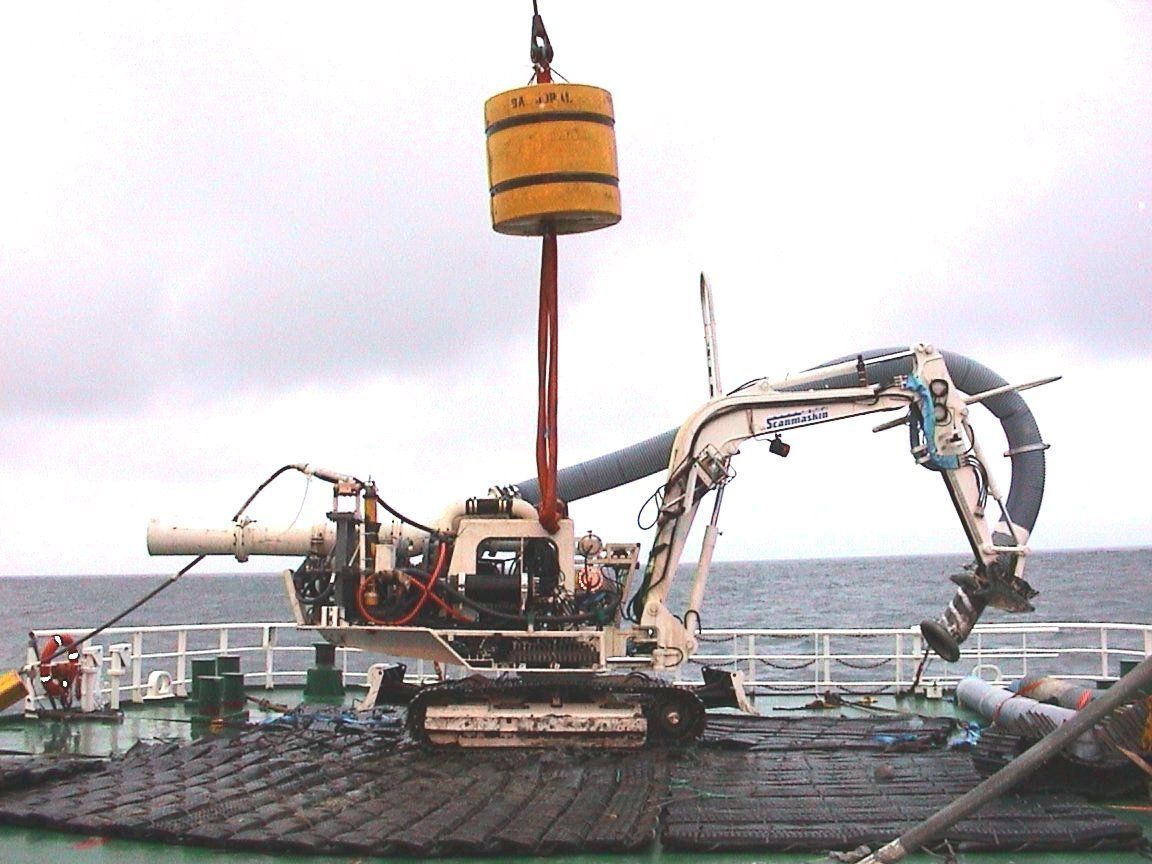

Marine & specialist guidance applications
pcX-Pro
Superior 3D machine guidance delivered by KINSHOFER Prolec's pcX-Pro
Suitable for

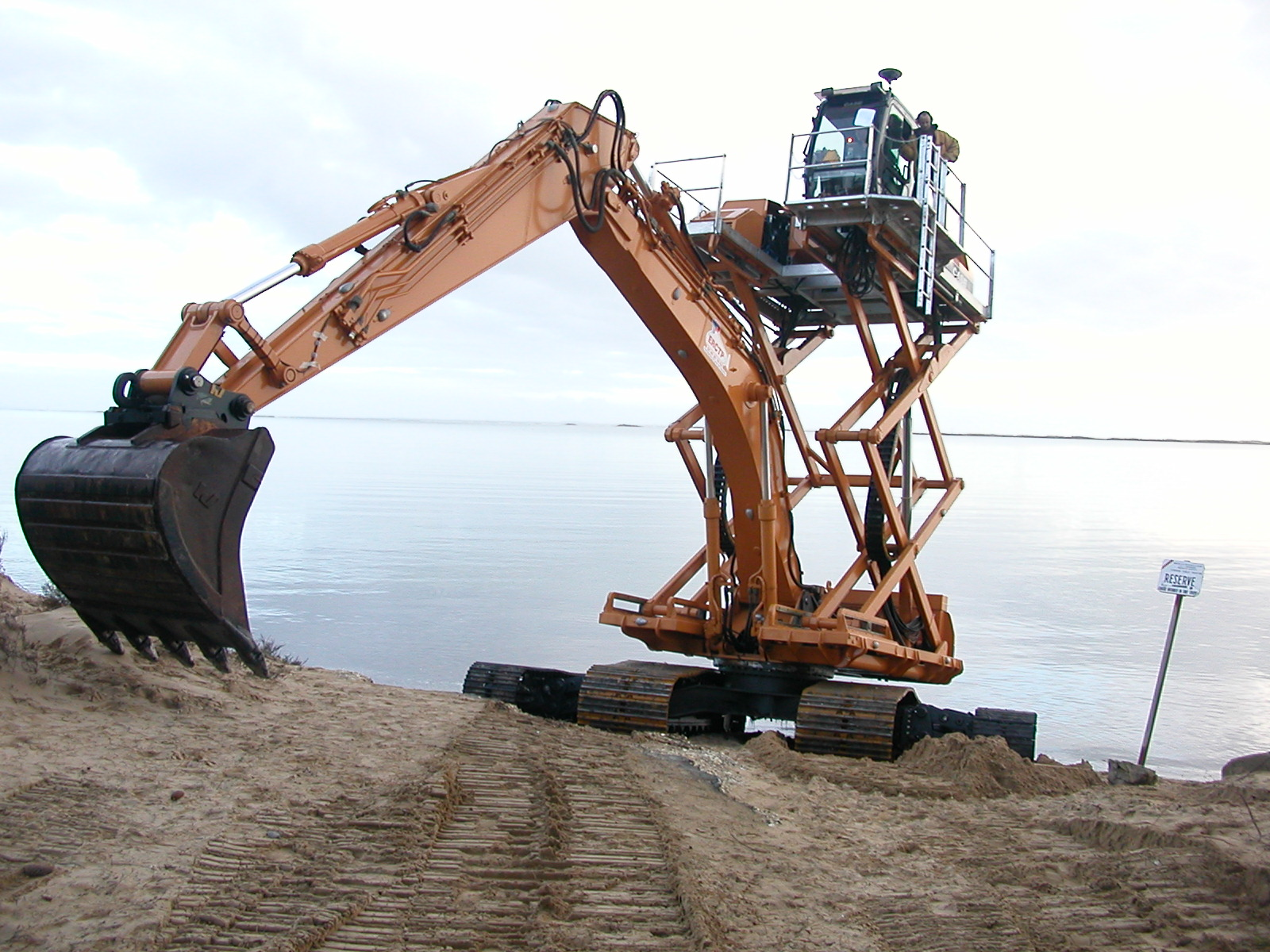

- Excavators - multiple articulations
- Dredging
- Drilling & Pilling machines
- Specialist machinery
Benefits
- Ruggedised large display for ease of use and personalisation
- Icon driven menu allows use in any language and without extensive training
- Industry benchmark for speed of operation and response
- Productivity gains in double digits through efficiency and removal of waste
- Multiple views and configurations tailored to suit your requirements
- Wide applicability including basic excavation, dredging, piling and revetment works
Features
- Runs with and without GNSS input
- Icon driven menu with customisable favourites
- Up to four views at once on screen
- 3D progress maps available in multiple colour
- Familiar Windows ™ operating system
- Pan/zoom and rotate feature for improved visibility of work area
- Fully removable touch screen computer can be transported between multiple excavators
- Display monitors bucket position precisely in real time
- Progress maps in multiple colours allows easy review of work progress
- On target indicators through graphics and colour coding
- Multiple tool point positions for precision grading
- “Stake out” function provides guidance in rock armour placement
- Terrain mapping – survey with tool
- Built in job viewer with colour shading
- Unlimited bucket and special tool designs available (see Prolec for complex tools)
- Configurable auto zoom and “rainbow” bucket features
- Configurable deadband and cross hairs displayed when digging
- Configurable data shown on display – distance to target, depth etc.
- Configurable views allowing multiple views of one job
- Configurable slew monitor status indicator
- Configurable avoidance zones, chain age lines and POI (can be exported from works also)
- Pro Job software allowing import and export of multiple file formats
- Simple GNSS monitor displays status of the positioning signal
- Context specific help
Options
- Multiple sensor options fully compatible with the base hardware
- Sensor variants for marine, long reach and civil applications
- Suction dredger option
- Tilting bucket options
- Drilling options
- Pilling options
- Compaction options
- Versions for proprietary equipment
- Various display options
- Machine and tool configuration can be altered to suite specific applications and one-off requirements
pcX-Pro is an outstanding product for construction equipment guidance offering unsurpassed flexibility and performance. pcX-Pro is exclusively a 3D positioning product with capability to include multiple machine and tool types according to need. The system shares an operating system and functionality with its counterpart, Digmaster Pro, so will be familiar to anyone used to using Prolec product but benefits from unique features which boost productivity and applicability more widely. There is virtually no limit to the configurations of this system and it can be further tailored to individual need if there is a bespoke application.
- Increase productivity by 50%
- Reduce staking by up to 90%
- Complete jobs faster and improve accuracy
- Reduces staff around the machine
- Reduces fuel consumption
- Reduces material overage & transportation costs
- Minimise environmental foot print
- Ensures consistency of operations regardless of operator skill level
Pro Job - desktop editing suite
Pro Job is KINSHOFER Prolec's proprietary desktop editing suite. It converts the designers file into a Prolec format called a '.tri' file.
Main benefits
- Allows Digmaster Pro to work on a single file format
- Pro Job can evolve without affecting Digmaster Pro
Files contain but not limited to, the following features
- Multiple Target layers
- Multiple overlay
- Multiple chainage lines
- Three types of avoidance zones available
